名称 : 不同原料粉末对钨制品性能的影响
英文名称 : The influence of different raw material powders on the properties of tungsten products
材料 : 748
委托单位 : 矿冶科技集团有限公司、北矿新材科技有限公司、北京市工业部件表面强化与修复工程技术研究中心
实验单位 : 矿冶科技集团有限公司、北矿新材科技有限公司、北京市工业部件表面强化与修复工程技术研究中心

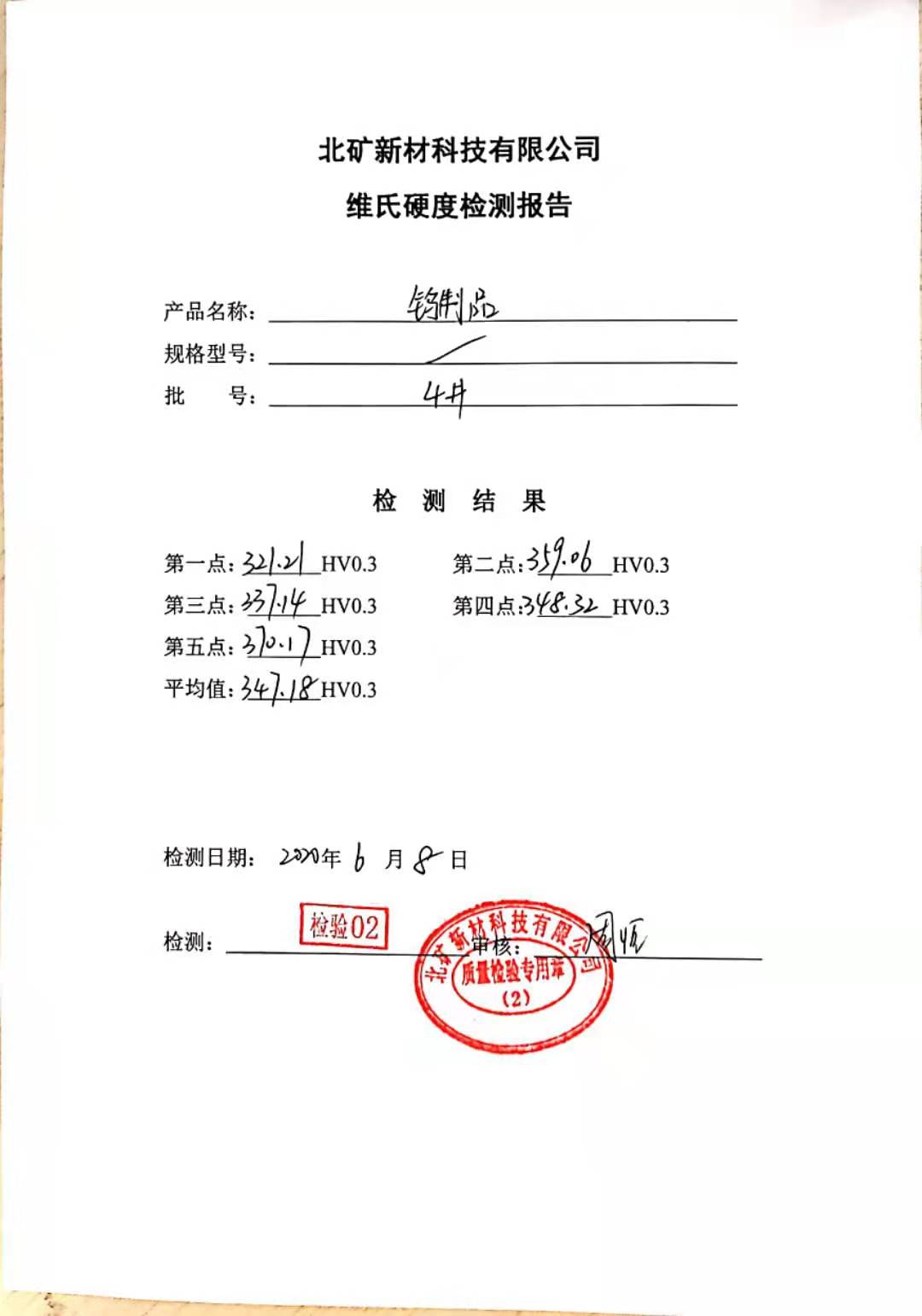

实验方法 : SEM形貌、密度、硬度
实验设备 : 固体密度计测量、 显微维氏硬度计、 扫描电镜
实验条件 : 等静压成型并在氢气气氛下经烧结制得钨坩锅
说明 :

本研究所用原料为两种还原钨粉,其费氏粒度分别为3.1~3.2μm、3.0~3.5μm。经烘箱充分干燥后,采用射流分级技术对其进行预处理,然后利用该原料,等静压成型并在氢气气氛下经烧结制得钨坩锅。经射流分级预处理后,费氏粒度为3.0~3.5μm的原料粉末制备得到的钨坩埚密度由18.247 g/cm3提高到18.770 g/cm3。同时,维氏硬度由HV0.3 309.09提高到HV0.3 372.15。同时,费氏粒度为3.1~3.2 μm的原料粉末,其密度由18.145 g/cm3提高到18.637 g/cm3,维氏硬度由315.92变为HV0.3 347.18。原钨粉经射流分级预处理后,钨制品的物理性能得到显著改善。

英文说明 :

The raw materials used in this study are two kinds of reduced tungsten powders, the Fisher particle size of which is 3.1~3.2μm and 3.0~3.5μm respectively. After being fully dried in an oven, it is pretreated by jet classification technology, and then the raw material is used to form a tungsten crucible by isostatic pressing and sintering in a hydrogen atmosphere. After pretreatment by jet grading, the density of the tungsten crucible prepared from raw material powder with a Fischer particle size of 3.0~3.5μm increased from 18.247 g/cm3 to 18.770 g/cm3. At the same time, the Vickers hardness increased from HV0.3 309.09 to HV0.3 372.15. At the same time, the density of raw material powder with a Fischer particle size of 3.1-3.2 μm increased from 18.145 g/cm3 to 18.637 g/cm3, and the Vickers hardness changed from 315.92 to HV0.3 347.18. After the raw tungsten powder is pretreated by jet grading, the physical properties of tungsten products have been significantly improved.

数据来源 : 学术期刊
附件下载
重点项目名称 : 大尺寸高纯稀有金属制品制备技术-大尺寸高纯稀有金属材料高温高压烧结、变形加工技术及产业化数据集
